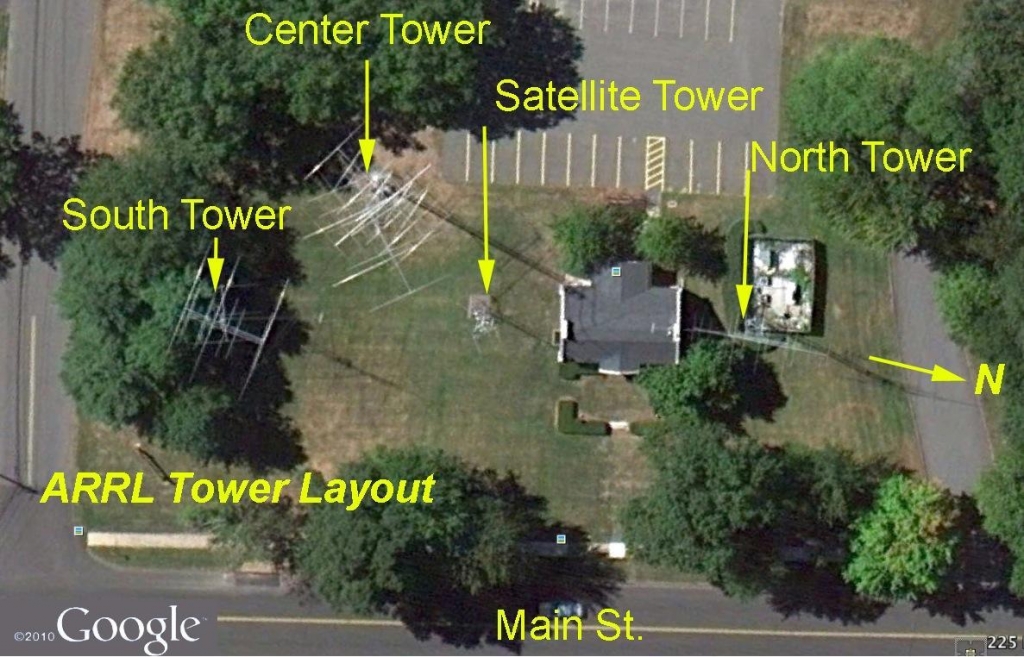

W1AW Antenna Farm
|
Center Tower (Rohn 65) 120 feet. |
|||
| Rotating antennas: | 20 meters | 5 element | |
| (Bulletin/Visitor) | 40 meters | 2 element | |
| Fixed antennas: | 160 meters | Dipole | |
| (Bulletin) | 2 meters | Collinear array | |
| 1.25 meters | Collinear array | ||
| 15 meters | 4 element |
parallel w/ lower 15 |
|
| 20 meters | 5 element |
parallel w/ lower 20 |
|
| 40 meters | 2 element | ||
| 10 meters | 4 element * | ||
| 15 meters | 4 element * | ||
| 20 meters | 5 element * | ||
| * Pointed in SSW direction | |||
|

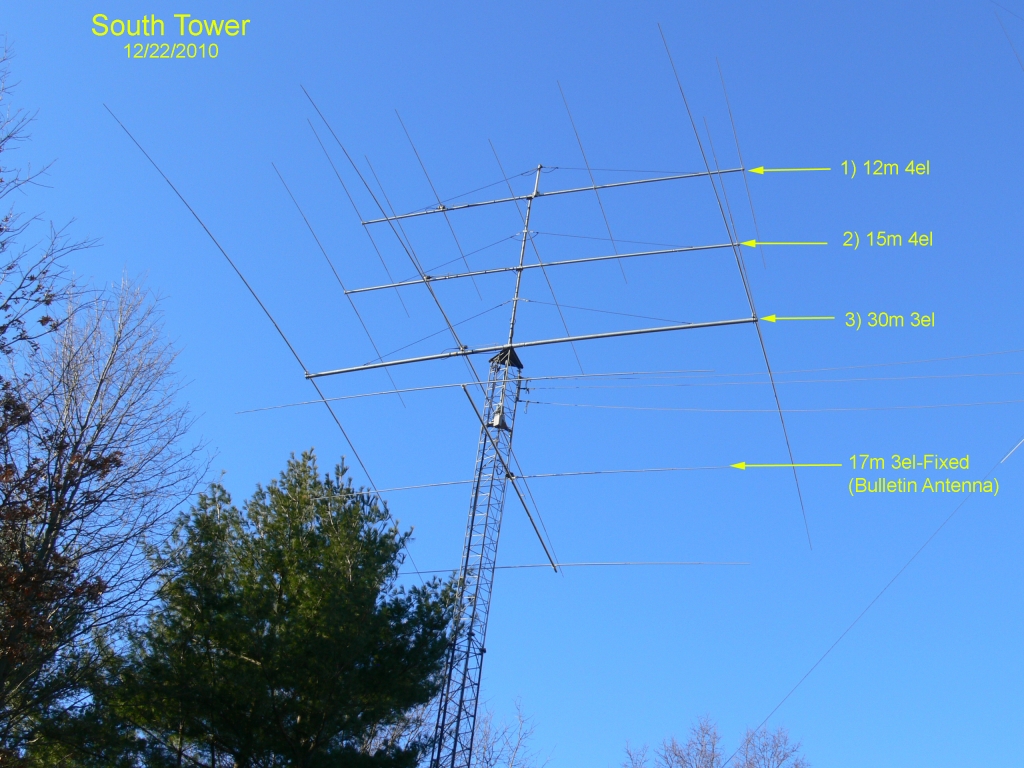

South Tower - Rohn SSV - 60 feet. |
|||
| Fixed antennas: | 17 meters | 3 element | Oriented west |
|
(Bulletin) |
|||
| Rotating antennas: | 12 meters | 4 element | |
| (guest op. positions) | 15 meters | 4 element | |
| 30 meters | 3 element | ||
| 6 meters | M-Square 6m Halo | Stacked with another 6-meter Halo below, based on manufacturer's specs. | |
|

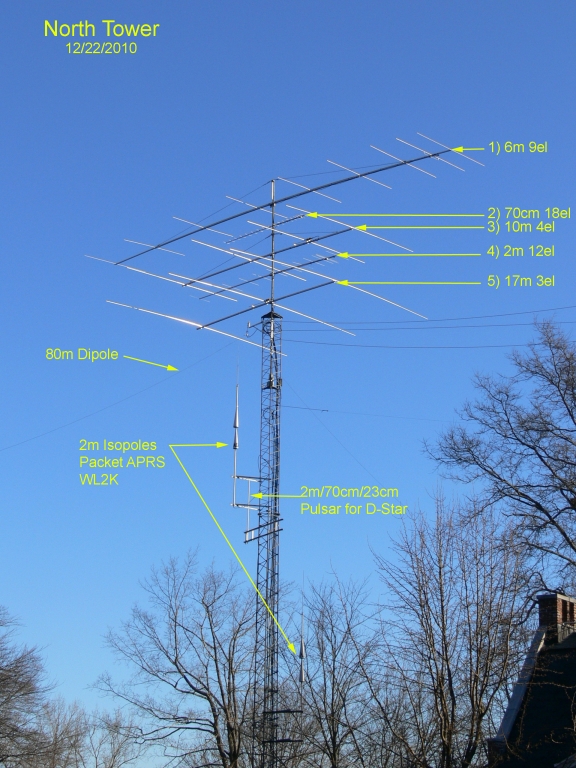

North Tower - Rohn SSV - 60 feet. |
|||
| Fixed antennas: | 80 meters | Dipole | |
| 2 meters | AEA Isopole | PacketCluster | |
| 2 meters | AEA Isopole | APRS | |
| 2/70/23 cm | MFJ Pulsar | D-Star | |
| Quadifiliar antenna for NOAA-xx satellites | |||
| Rotating antennas: | 6 meters | 9 element | |
| (guest op. positions) | 440 MHz | 18 element | |
| 10 meters | 4 element | ||
| 2 meters | 12 element | ||
| 17 meters | 3 element | ||
|
|
|||
|
Satellite Tower - Rohn SSV - 60 feet. |
|||
| Satellite antennas | 2 meters | 20 element Crossed yagi | |
| 70 cm | 15 element Crossed yagi | ||
| 23 cm | 23 element yagi | ||
| 13 cm | BBQ grill w/DEM downconverter | ||
| Discone - used for GPS receiver supplying 10 MHz reference frequency | |||
| (Bulletin/Visitor) | 80 meters | 4-wire cage | |
| 176' Doublet fed w/450 ohm window line into remote tuner | Homebrew Doublet | Antenna used for MARS/SHARES use | |
| 2 meters | 3 element yagi | ||
| 2m/70cm | Rocky Mountain J-Pole |
|
|
